Our explosion-safe AR-052 air conditioners are based on the Daikin range of air conditioners and are made to safely ensure a good climate in an area where a release of gas, vapor or mist could possibly cause an explosive atmosphere (Zone 2).

The units are widely used in offshore accommodations and temporary living quarters, control rooms, crane cabins, storage rooms for flammable substances, and a wide range of technical and industrial spaces that must be explosion proof.

The air conditioners are explosion-safe and certified in accordance with European directive 2014/34/EU (ATEX 114) and are CE marked.

Depending on the required cooling capacity and room layout, the Daikin AR-052 can be supplied with a range of indoor unit types:

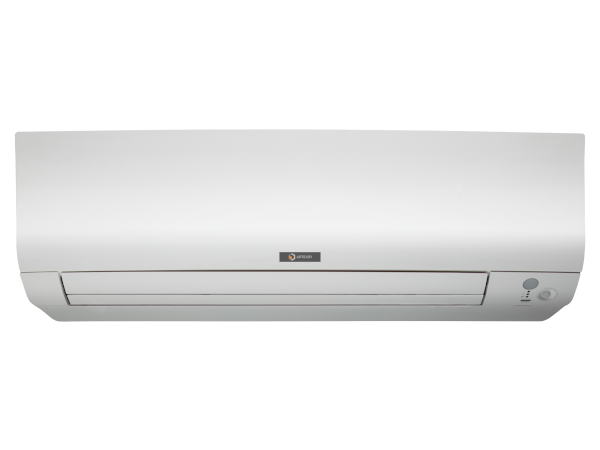

• Wall-mounted units

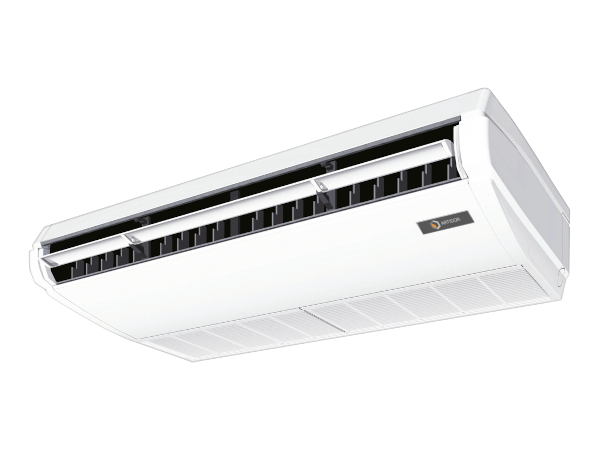

• Ceiling-mounted units
• Cassette units

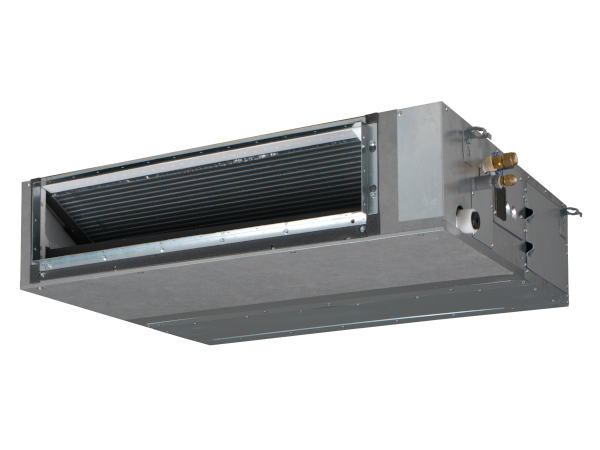

• Ducted units

The systems can consist of a combination of explosion-safe and non-explosion-safe units, depending on the zoning of the area where the units are placed. During the conversion of the units to explosion-safe, the greatest possible attention is given to the maintainability and ease with which the units can be installed. The functionality remains completely intact.

To extend the service life under severe coastal and offshore conditions, the aluminum fins of the condenser and the copper tubing can be provided with a protective coating for effective corrosion resistance.

Features

• Based upon the Daikin range of air conditioning systems
• ATEX certified
• Explosion-safe for gasses and vapours, suitable for use in Zone 2
• From 2,0 up to 13,4 kW, cooling and heating (heat pump function)
• Ambient temperatures from -20 °C up to +52 °C
• Industrial and compact executions
• Optional coating of the condenser fins and copper tubing
• Any combination of explosion-safe and non-explosion safe parts can be made

Technical Properties

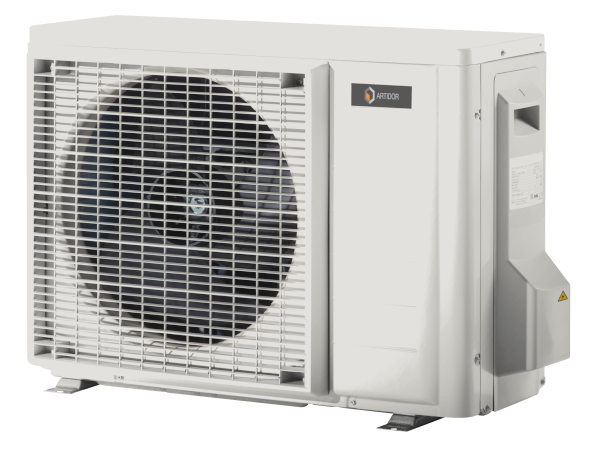

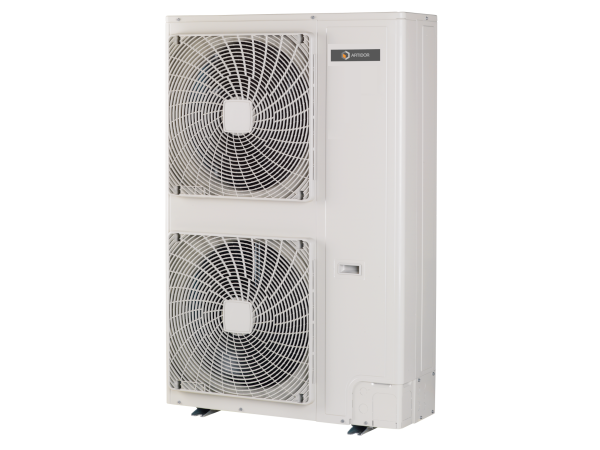

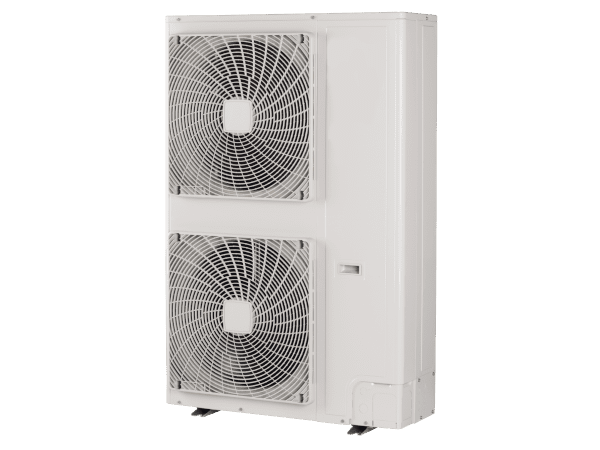

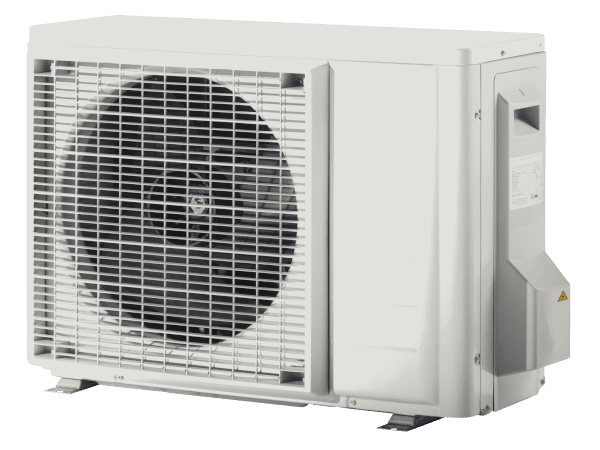

• Explosion safety (outdoor unit): II 3 G Ex ec h ic mc IIB+H2 T3 Gc
• Explosion safety (indoor unit): II 3 G Ex ec h ic IIB+H2 T4 Gc
• Explosion safety (remote control): II 3 G Ex ic IIC T6 Gc
• European directives: 2014/34/EU (ATEX 114), 2014/30/EU (EMC) and 2009/125/EC (Eco Design)
• Applied standards: EN 14986:2017, EN 60079-0:2018, EN 60079-7:2015 / A1:2018, EN 60079-11:2012, EN 60079-18:2015 / A1:2017, EN 80079-36:2016 and EN 80079-37:2016
•  Certification: EU Declaration of Conformity / Unit Assessment Certificate
•  Power supply: 220 – 240 VAC / 380 – 415 VAC
•  Mains frequency: 50 Hz
•  Ambient temperature: -20 °C to +52 °C
